These are a collection of our Dyno graphs to date. All are from Torque Performance.
This collection are of 4AGE Turbo powered Toyotas, running an aftermarket ECU of some sort.

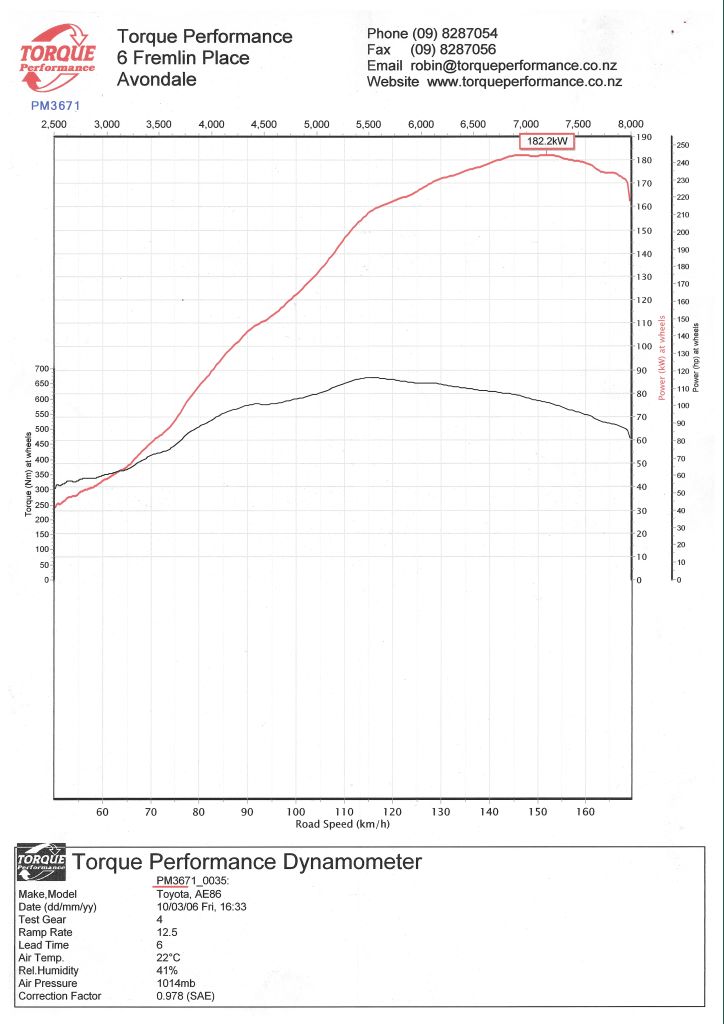

Matt's T3/4 powered 8:1 4AGZE AE86, running Megasquirt+Bluetop computers as at March 06.
Now on 14lbs with a whopping 675Nm in 4th!!

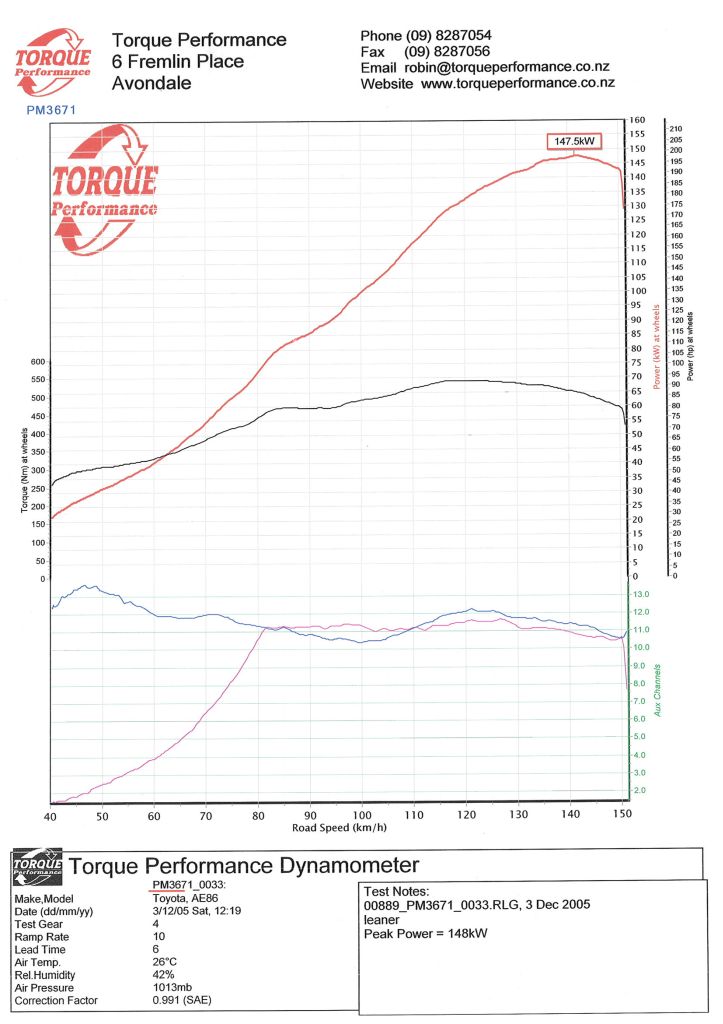

Matt's T3/4 powered 8:1 4AGZE AE86, running Megasquirt+Bluetop computers as at December 05.
Note the torque - 550Nm in 4th gear, this is the same peak torque as the 176kW run above. And at only 11lbs!

Matt's setup again, increased compression from 8:1 to 9.2:1 - March 04.
Red Lines = February 04.
Blue Lines = March 04 - 3rd Gear.
Pink Lines = March 04 - 4th Gear.
Green Lines = disregard.

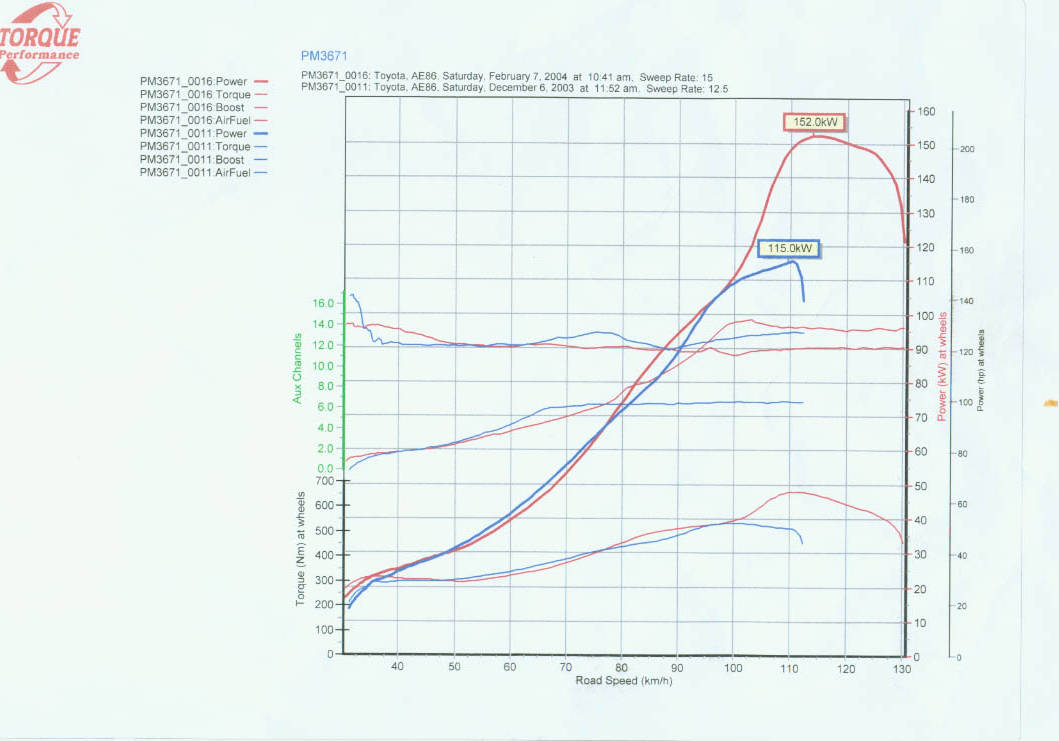

Matt's T3/4 powered bluetop AE86, running EMX+Bluetop computers as at February 04.
Red Lines = EMX ECU in fuel only + Bluetop ECU for ignition.
Blue Lines = Stock Bluetop ECU.

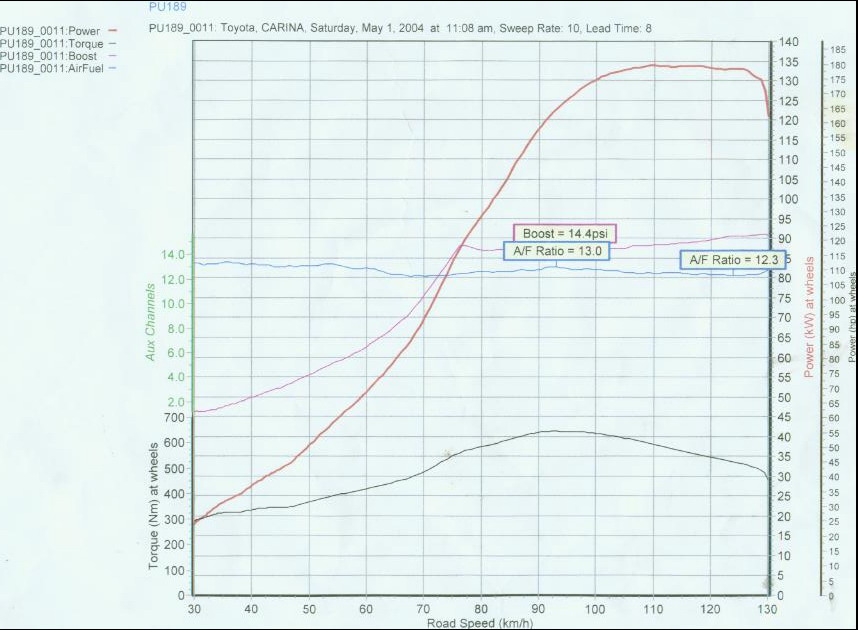

Karl's T3/4 powered bluetop AA60, running Megasquirt fuel only computer + 2TGEU ignitor as at May 04. Note motor breathing heavily, replaced a few weeks later.

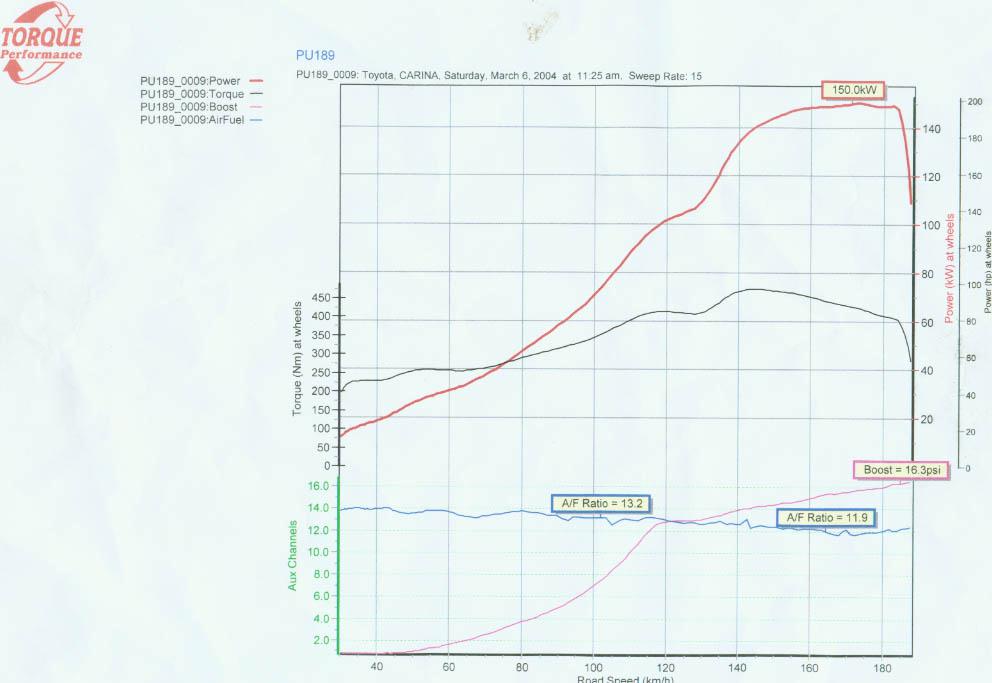

Karl's T3/4 powered bluetop AA60, running Megasquirt fuel only computer + 2TGEU ignitor as at March 04.

A friend Glenn's turbo bluetop AA63 Carina, running Link ecu controlling fuel and quad coil spark.

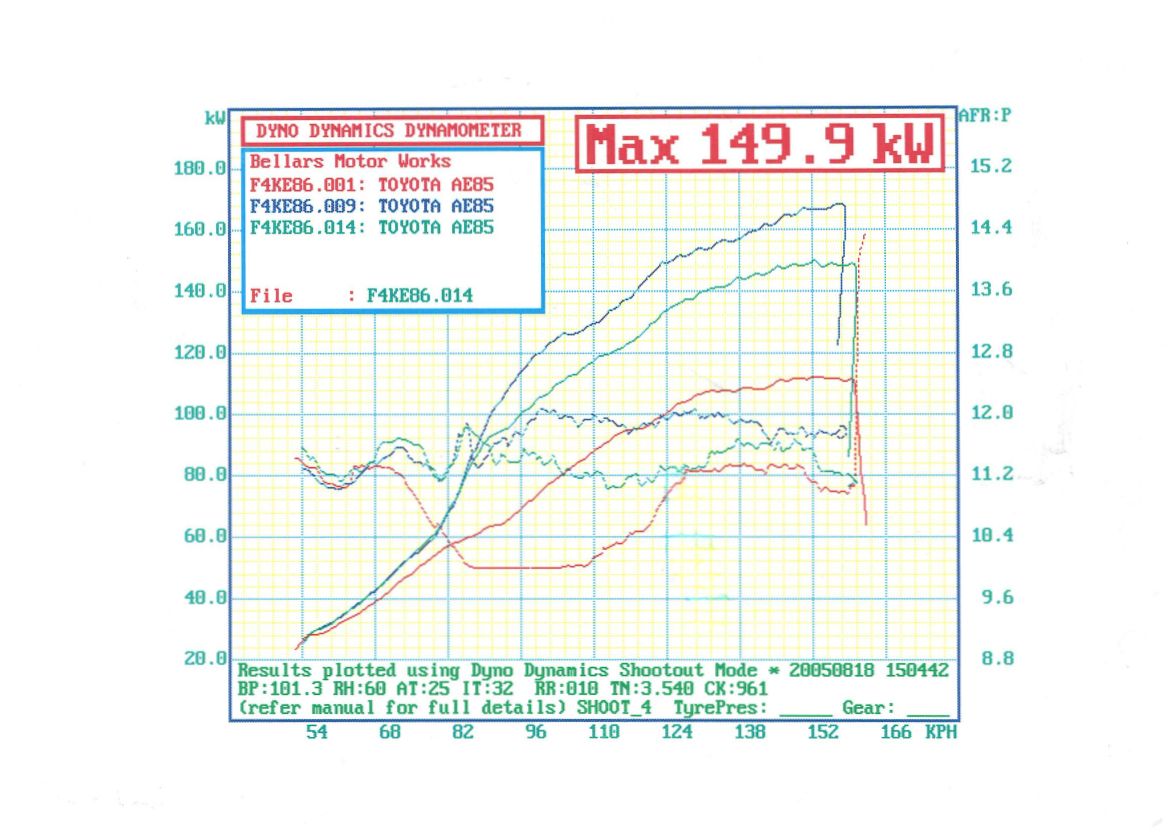

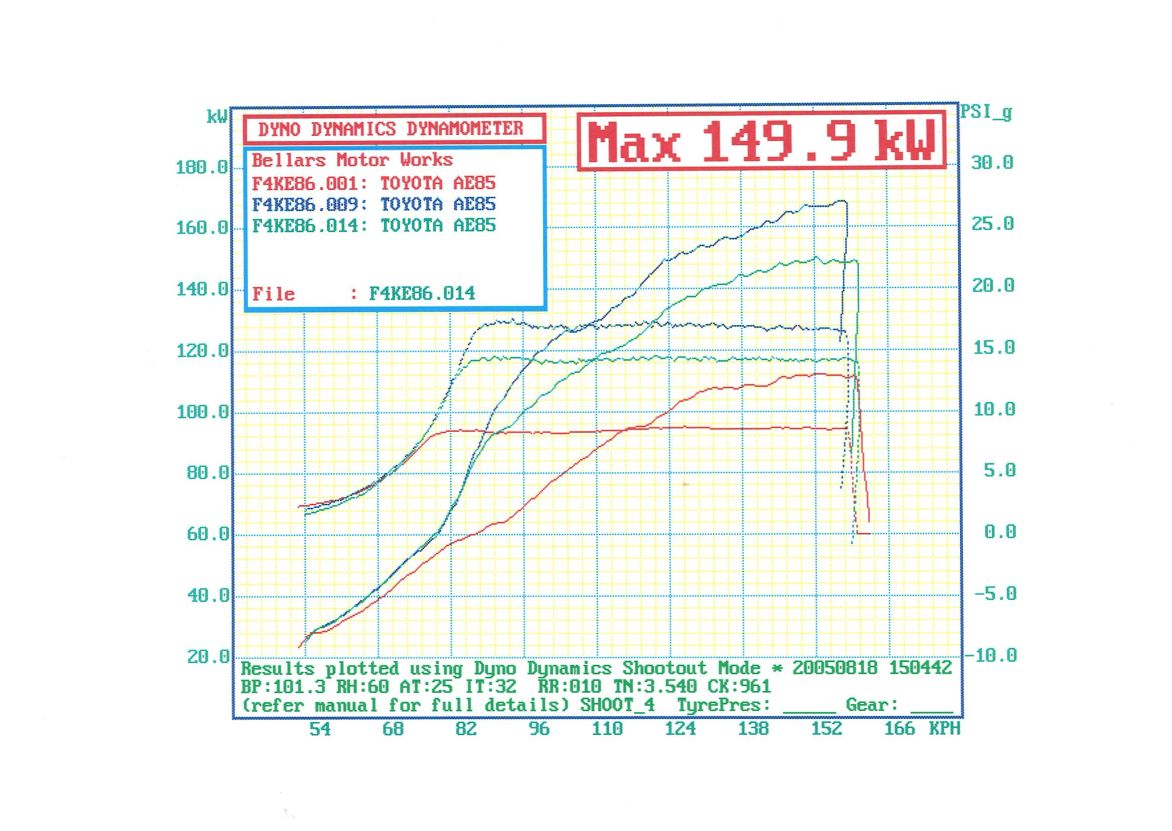

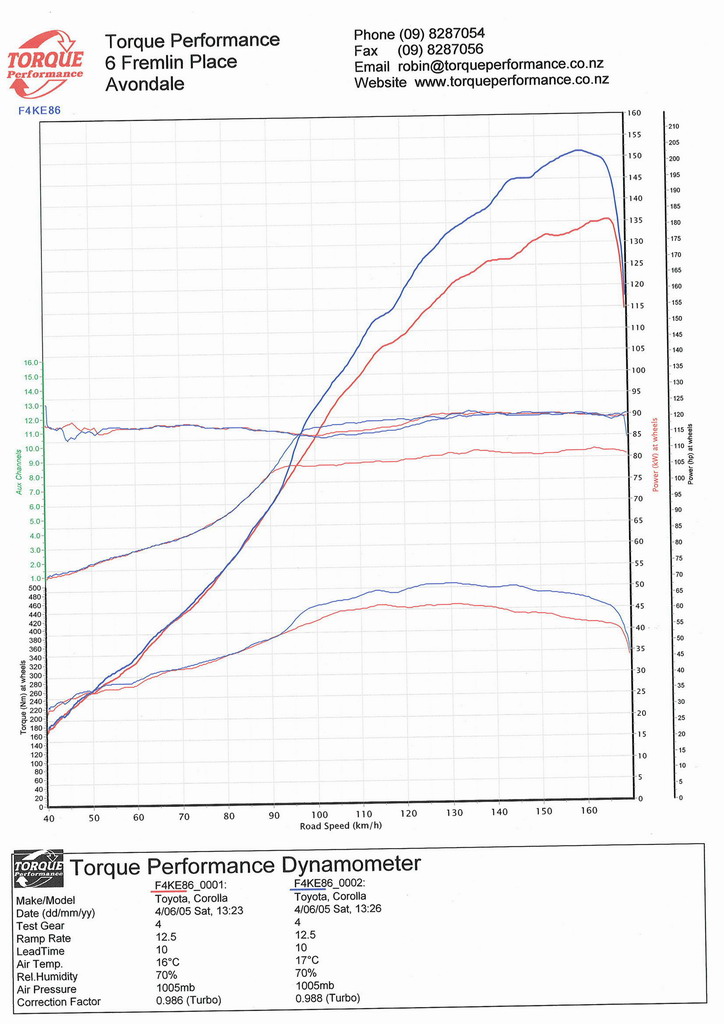

Lance's 8:1 4AG-ZE turbo AE85, running old rotamax? turbo, and Link Plus ecu.

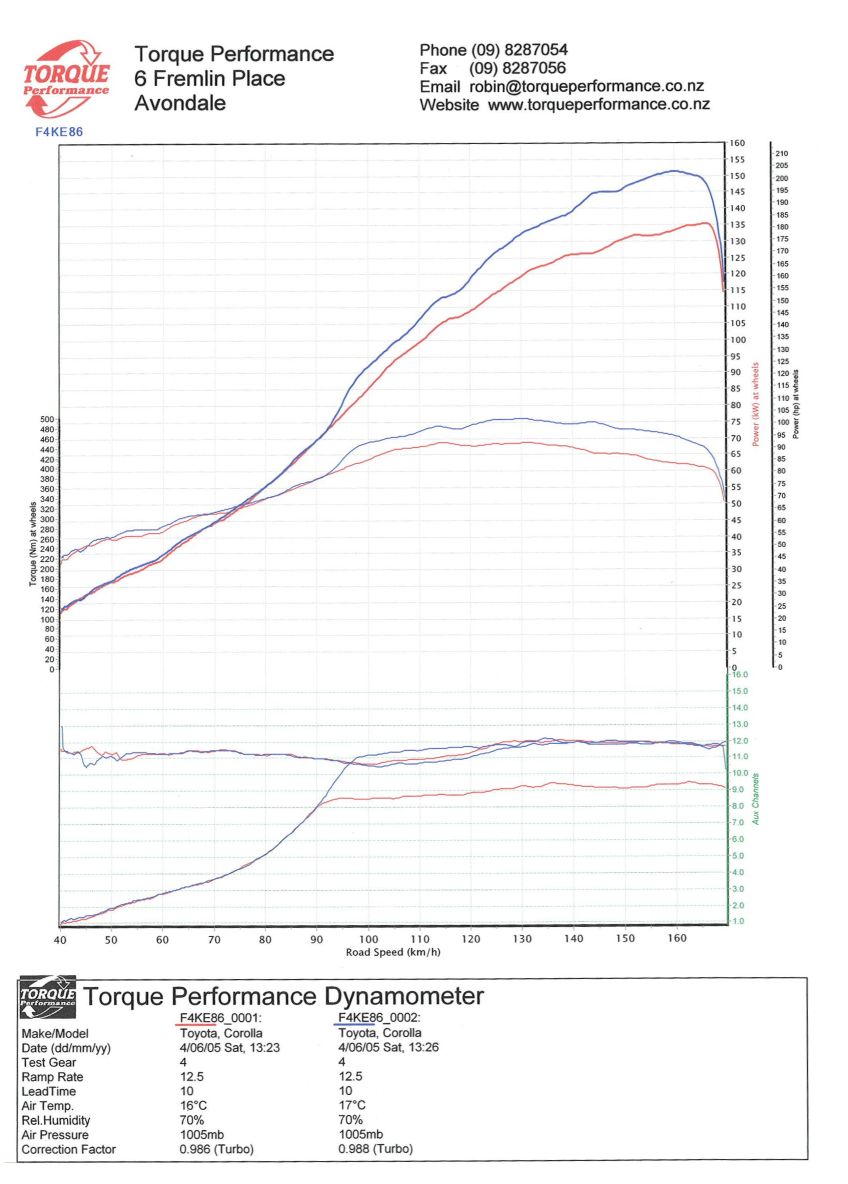

Lance's 8:1 4AG-ZE turbo AE85, running T3/4 turbo, and Link Plus ecu. - Bellars
